Concrete Vibrator Shaft, Vibrator Head, RV Series

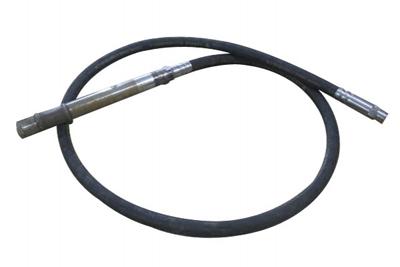

RV series concrete vibrator poker head with flexible shaft is designed for the internal vibration and compaction of fresh concrete.

Our RV series vibrating poker heads are designed with self-adjusting device to make the its work more stable, which are more common for operating in Russia, Ukraine, Kazakhstan, etc.

Technical Data

Model	Diameter(mm)	Length (mm)	Vibration frequency (Hz)	Vibration frequency (vpm)	Amplitude (half value) (mm)	Amplitude (total value) (mm)	Dia. of Flex. Hose D(mm)	Dia. of Flex. Shaft d(mm)	Weight of 4m Hose (kg)
RV50Ⅱ	50	555	230	13800	1.2	2.4	36	13	20

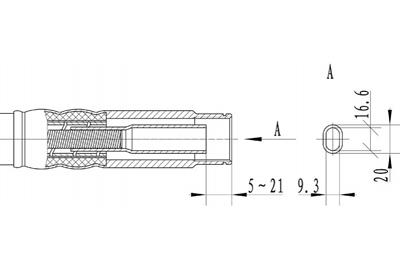

Connection

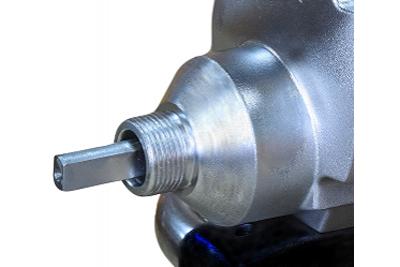

Connecting method: C/W RUSSIA Coupling

Adaptive Motor
