The external concrete vibrator is distinguished by its simple structure, convenient maintenance and great durability. After being placed in the required working places, this external vibrator only needs to be powered electrically for concrete compaction or vibration of concrete forms, requiring no need for any human intervention.

The external concrete vibrator is suitable for effective compaction of concrete pavement, the concrete compaction depth preferably less than 20 cm. In addition, this external concrete vibrator can also be used as a vibration source to vibrate concrete forms or convey materials.

Design Principle

The external concrete vibrator is composed of a vibration motor and eccentric weight discs. This product needs to be mounted on equipment or fastened on vibrator mounting bracket when working.

Unlike standard asynchronous motors, asynchronous motor used in this concrete vibrator is designed with eccentric weights at the both end of rotating shaft, which improves the starting torque to realize efficient vibration.

Optional Types

2. External Concrete Vibrator (with 2 Pole 3 Phase Electric Motor)The ZF series external concrete vibrator can be used not only for concrete compaction, but also as a vibration source for various equipment wherever vibration is required, such as a conveyor belt, screening equipment, packaging machinery, etc.
2. External Concrete Vibrator (with 4 Pole 3 Phase Electric Motor)The ZF series external concrete vibrator has been widely used in various fields for concrete compaction or various jobs wherever vibration source is required, such as belt conveying, materials sieving, product packaging, prefabricated parts production, etc.
2. External Concrete Vibrator (with Single Phase Electric Motor)This external concrete vibrator with single phase motor is designed for operation in places where the three-phase power supply is unavailable, such as small-size workshops. In addition to compaction of concrete...

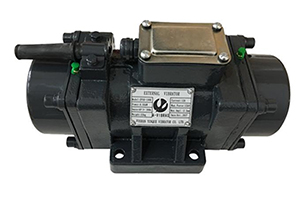

2. High Frequency External Concrete VibratorThe speed of the high frequency external concrete vibrator ranges from 6000 rpm to 12000 rpm, and an electronic frequency converter is used as power supply. This concrete vibrator is suitable for the prefabrication of various thin wall constructions...

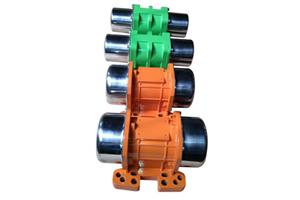

2. DC Motor External Concrete VibratorThe DC motor external concrete vibrator has aluminum housing, and it is adapted to the DC power supply on vehicles, so that it can be used directly on the concrete pump truck or other conveying equipment to assist the vibration and compaction work.
2. External Pneumatic Concrete VibratorThis PNEV40 external pneumatic concrete vibrator can be quick mounted on cradle lug bracket or using bolt for fastening on vibrator mounting bracket, ensuring a firm and compact structure while getting a better appearance.
