Three Phase Electric Motor, Concrete Vibrating Motor

Three Phase Electric Motor, Concrete Vibrating Motor

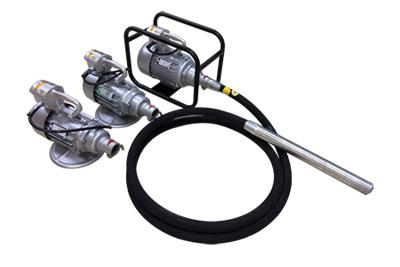

Coupled with a three phase electric motor, pendulum concrete vibrator is able to implement intensive work of internal vibration and effective compaction of fresh concrete.

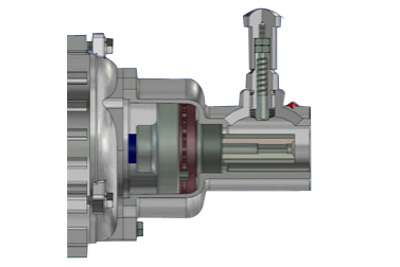

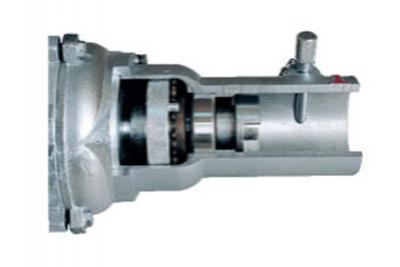

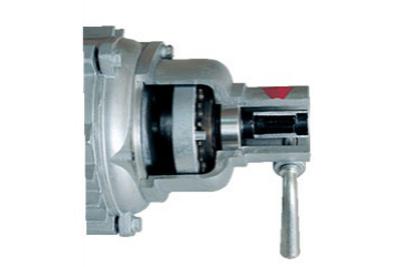

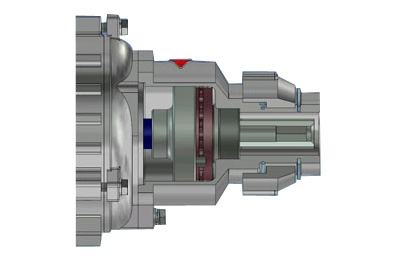

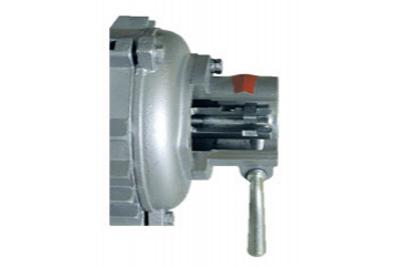

Optional Couplings

A-VIBRAS Coupling B
A-VIBRAS Coupling A
Dynapac Coupling
Hayashi Coupling
Mikasa Coupling

Note: Other couplings can be customized.

Optional Models

Model	Coupling Type	Voltage	Frequency	Power (kW)	Power (Hp)	Speed under 50Hz(rpm)	Speed under 60Hz(rpm)	Weight(kg)	Dimensions L×W×H(mm)
ZN50	A-VIBRAS Coupling B	220V/380V	50/60Hz	1.45	2	2850	3450	14	300×220×275
ZN70				1.9	2.5			15	315×220×275
ZN70Ⅱ				2.6	3			21	430×240×325
ZN50A	A-VIBRAS Coupling A	220V/380V	50/60Hz	1.45	2	2850	3450	14	350×220×275
ZN70A				1.9	2.5			15	360×220×275
ZN70AⅡ				2.6	3			21	430×240×325
ZN50Z	Dynapac Coupling	220V/380V	50/60Hz	1.45	2	2850	3450	14	420×220×275
ZN70Z				1.9	2.5			15	420×220×275
ZN70ZⅡ				2.6	3			21	465×240×325
ZN50LH	Hayashi Coupling	220V/380V	50/60Hz	1.45	2	2850	3450	14	350x220x275
ZN70LH				1.9	2.5			15	365×220×275
ZN70LHⅡ				2.6	3			21	430×240×325
ZN50LM	Mikasa Coupling	220V/380V	50/60Hz	1.45	2	2850	3450	14	360×220×275
ZN70LM				1.9	2.5			15	375×220×275
ZN70LMⅡ				2.6	3			21	430×240×325
