Concrete Paving Vibrator Shaft and Head

Concrete Paving Vibrator Shaft and Head

Recommended Application

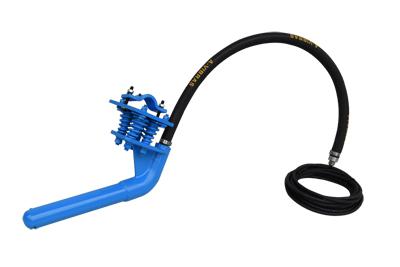

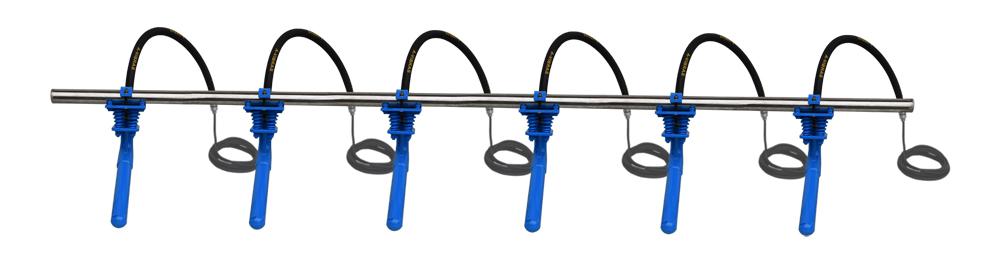

The concrete paving vibrator shaft and poker head adopts a quick clamping method, which has a compact structure. This vibrator plays a great role to provide vibration for concrete slipform paver and it is suitable for the construction of high-grade highways.

Installation

Optional Models

Model	Poker head diameter (mm)	Poker head length (mm)	Total weight (kg)	Electric current (A)	Vibration frequency (vpm)	Amplitude (total value) (mm)	Amplitude (half value) (mm)	Centrifugal force (kN)	Power Supply
ZDNG50	50	482	20	12	12000	2	1	3.5	48V 3～200Hz
ZDNG50Ⅱ	50	564	21	12	12000	2	1	3.5	48V 3～200Hz
ZDNG65Ⅱ	65	494	22	13.5	12000	2.4	1.2	7	110V 3～200Hz
ZDNG65Ⅲ	65	494	22	13.5	12000	2.4	1.2	7	110V 3～200Hz

Note:

Flexible Shaft Length: 1.2m; Cable Length: 7m or 8m.
The difference between ZDNG50II and ZDNG50 lies in the different diameter of the elbow. The elbow diameter of the ZDNG50 is larger than that of the ZDNG50II.
The difference between ZDNG65III and ZDNG65II lies in the different angle of the elbow. The angle of the elbow of ZDNG65II is 120º and the ZDNG65III is 90º.
