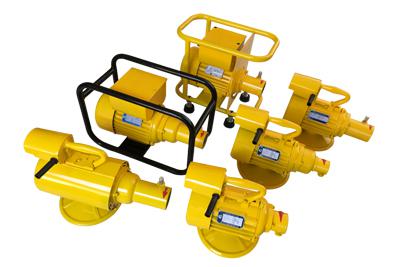

Single Phase Electric Motor, Concrete Vibrating Motor

Flexible Vibrator Shaft and Vibrator Head

The single phase electric motor is applicable to pendulum concrete vibrator which is mainly used for internal vibration and compaction of fresh concrete.

This single phase electric motor is compatible with ZN series, JKV series and RV series pendulum vibrating poker heads and shafts, resulting in an excellent compacting effect and high working efficiency, and it is especially suitable for construction occasions where the only single phase power supply is available.

Optional Couplings

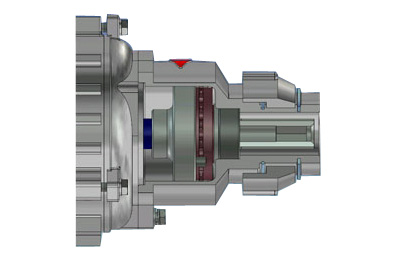

  • A-VIBRAS Coupling B
    A-VIBRAS Coupling B

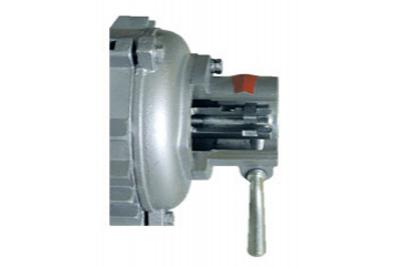

  • A-VIBRAS Coupling A
    A-VIBRAS Coupling A

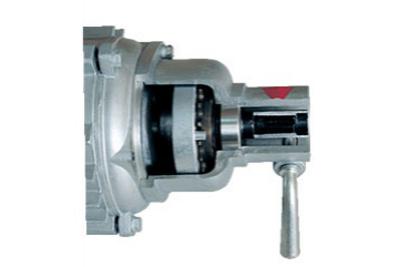

  • Dynapac Coupling
    Dynapac Coupling

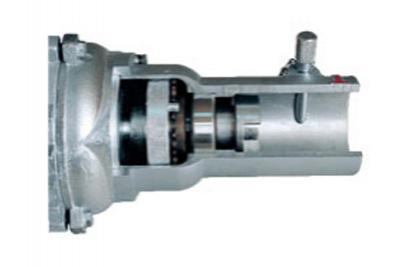

  • Hayashi Coupling
    Hayashi Coupling

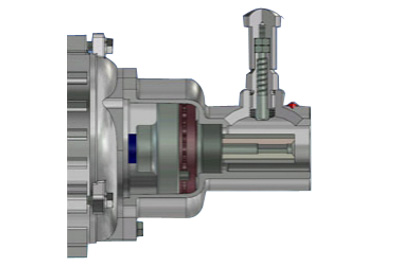

  • Mikasa Coupling
    Mikasa Coupling

Note: Other couplings can be customized.

Optional Models
110V Single-phase electric motor
Model Coupling Type Voltage Frequency Power (kW) Power (Hp) Speed under 50Hz(rpm) Speed under 60Hz(rpm) Weight(kg) Dimensions L×W×H(mm)
ZN50Ⅱ-D A-VIBRAS Coupling B 110V 50/60Hz 1.45 2 2850 3450 17.5 410×270 ×360
ZN50DSC A-VIBRAS Coupling B 110V 50/60Hz 1.6 2.2 4000 4000 7 kg 390×208×208
ZN70Ⅱ-D A-VIBRAS Coupling B 110V 50/60Hz 1.9 2.5 2850 3450 22.5 415×270 ×375
ZN50AⅡ-D A-VIBRAS Coupling A 110V 50/60Hz 1.45 2 2850 3450 17.5 410×270×360
ZN70AⅡ-D 1.9 2.5 22.5 415×270×375
ZN50ZⅡ-D Dynapac Coupling 110V 50/60Hz 1.45 2 2850 3450 17.5 410×270×360
ZN70ZⅡ-D 1.9 2.5 22.5 415×270×375
ZN50LHⅡ-D Hayashi Coupling 110V 50/60Hz 1.45 2 2850 3450 17.5 410×270×360
ZN70LHⅡ-D 1.9 2.5 22.5 415×270×375
ZN50LMⅡ-D Mikasa Coupling 110V 50/60Hz 1.45 2 2850 3450 17.5 410×270×360
ZN70LMⅡ-D 1.9 2.5 22.5 415×270×375
220V Single-phase electric motor
Model Coupling Type Voltage Frequency Power (kW) Power (Hp) Speed under 50Hz(rpm) Speed under 60Hz(rpm) Weight (kg) Dimensions L×W×H(mm)
ZN50-D A-VIBRAS Coupling B 220V 50/60Hz 1.45 2 2850 3450 14kg 335×220×275
ZN50DSC 220V 50/60Hz 1.6 2.2 4000 4000 7 kg 390×208×208
ZN70-D 220V 50/60Hz 1.9 2.5 2850 3450 22kg 430×240×325
ZN50A-D A-VIBRAS Coupling A 220V 50/60Hz 1.45 2 2850 3450 14Kg 380×220×275
ZN70A-D 50/60Hz 1.9 2.5 2850 3450 22kg 430×240×325
ZN50Z-D Dynapac Coupling 220V 50/60Hz 1.45 2 2850 3450 14kg 380×220×275
ZN70Z-D 50/60Hz 1.9 2.5 2850 3450 22kg 465×240×325
ZN50LH-D Hayashi Coupling 220V 50/60Hz 1.45 2 2850 3450 15kg 390×220×275
ZN70LH-D 50/60Hz 1.9 2.5 2850 3450 22kg 430×240×325
ZN50LM-D Mikasa Coupling 220V 50/60Hz 1.45 2 2850 3450 15kg 395×220×275
ZN70LM-D 50/60Hz 1.9 2.5 2850 3450 22kg 430×240×325
Applicative Vibrator Head & Shaft
Concrete Vibrator Power Unit (Pendulum Type)
