Rigid Vibrator Shaft | Concrete Vibrator Head

Rigid Vibrator Shaft and Vibrator Head

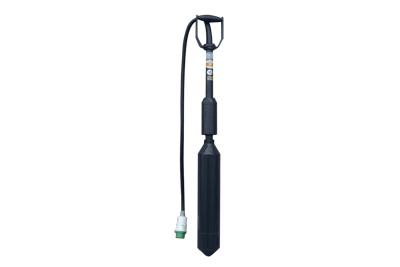

ZDN85 Rigid shaft concrete vibrator

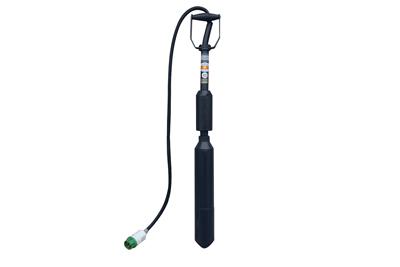

ZDN100 Rigid shaft concrete vibrator

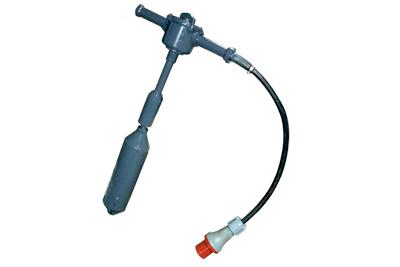

ZDN125 Rigid shaft concrete vibrator

Coupled through plugs and sockets with the mechanical frequency converter, the overall structure of ZDN series vibrating poker is compact and sleek.

The poker head diameter of the concrete vibrator is usually longer than 85mm, which is suitable for some large engineering jobs such as water conservancy projects and hydropower projects.

Optional Models

Model	Power (kW)	Poker head diameter (mm)	Working length (mm)	Vibration frequency (Hz)	Amplitude (half value) (mm)	Amplitude (total value) (mm)	Centrifugal force (kN)	Overall dimension L×W×H(mm)	Weight (kg)	Adaptive power supply
ZDN85	1	85	480	197	0.8	1.6	6.6	1200×122 ×85	15	48V 3~ 200Hz
ZDN100	1.85	100	525	148	1.6	3.2	13	1100×122 ×100	22	48V 3~ 150Hz
ZDN125	2.5	125	510	148	1.7	3.4	20	1080×480 ×150	38	48V 3~ 150Hz
