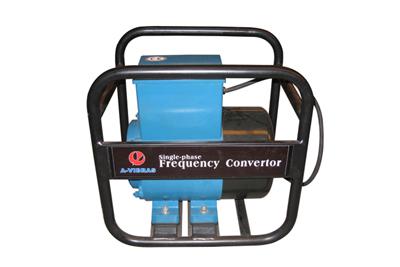

Single Phase Frequency Converter for Concrete Vibrator

Recommended Application

The ZJB200 series single phase frequency converter can be matched with a ZDN series vibrating poker head with flexible shaft, featuring a compact structure.

This frequency converter needs to be connected with a single-phase power supply of 220V, with its low output voltage of 48V only, safe operation will be highly ensured.

Optional Models

Model	Capacity (kVA)	Input (Ph/Hz/V/A)	Output (Ph/Hz/V/A)	Overall dimension L×W×H(mm)	Weight (kg)	Model of matched vibrator head &shaft	Number of matched vibrator head &shaft
ZJB200/25/2-D	2.5	1/50/220/5.7	3/200/48/25	470×300×400	37	ZDN35	2
ZJB200/25/1-D	2.5	1/50/220/5.7	3/200/48/25	470×300×400	37	ZDN60	1
ZJB200/11/1-D	1.1	1/50/220/2.8	3/200/48/11	400×300×400	27	ZDN35	1

Applicative Vibrator Head & Shaft

2. Flexible Vibrator Shaft and Vibrator Head
