Concrete Vibrator Shaft, Vibrating Eccentric Head, Type I

Concrete Vibrator Shaft, Vibrator Head, RV Series

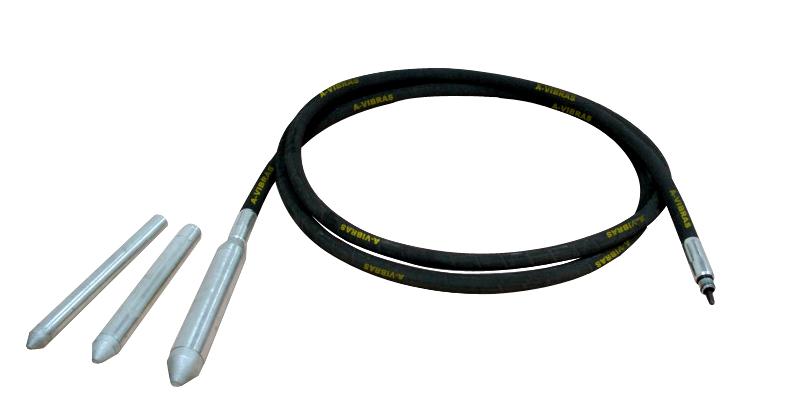

ZPN series type I eccentric concrete vibrator flexible shafts are designed with adaptive couplings to connect motors used in Europe and America. This eccentric vibrating poker head is relatively short, which is highly suitable for the high frequency vibration of concrete with a shallow depth.

Optional Poker Head

Model	Poker head diameter (mm)	Poker head length (mm)	Vibration frequency (Hz)	Vibration frequency (vpm)	Amplitude (total value) (mm)	Amplitude (half value) (mm
ZPN29	29	337	280	16800	1.4	0.7
ZPN39	39	318	270	16200	1.54	0.77
ZPN49	49	312	260	15600	1.62	0.81
ZPN59	59	306	250	15000	1.64	0.82

Parameters of Flexible Hose and Flexible Shaft

Outer diameter of hose: 30mm
Inner diameter of hose: 15mm
Flexible shaft diameter: 10mm
Length: 1m, 1.5m, 2m, 3m, 4m, 5m, 6m

Adaptive Motor

2. Electric Concrete Vibrator Motor Type I
