Electronic Frequency Invertor for Concrete Paving Vibrator

Mechanical Frequency Converter for Concrete Paver

Recommended Application

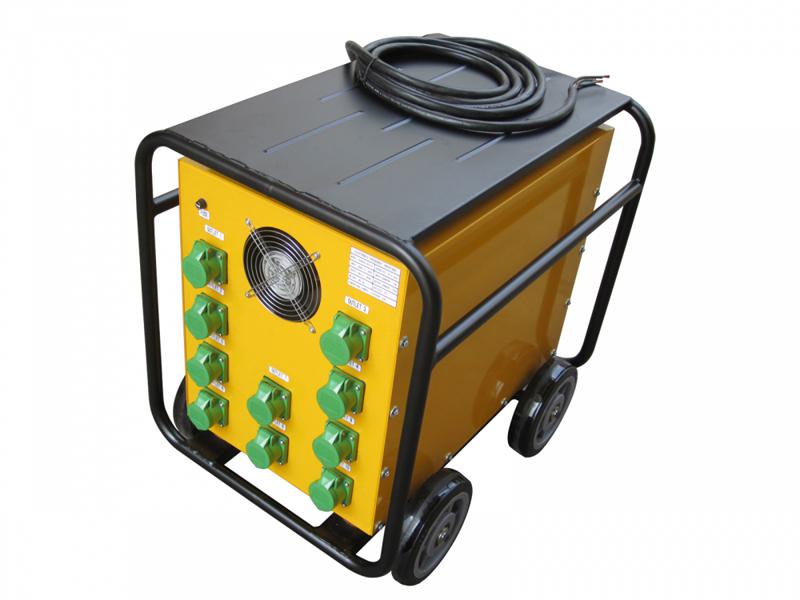

The ZEB200 series electronic frequency invertor can be used as a power supply for vibrator of concrete slipform paver. And it achieves its frequency conversion through power components. This frequency converter has casters at the bottom of protective frame, which makes it easy for transitions.

Optional Models

Model	ZEB200/165/5	ZEB200/165/5
Capacity (kVA)	16.5	16.5
Input (Ph/Hz/V/A)	3/50/380/14	3/50/380/14
Output (Ph/Hz/V/A)	3/200/130/68	3/200/130/68
Dimensions L×W×H(mm)	710×550×700	710×550×700
Weight (kg)	63	63
Model of matched vibrator head & shaft	ZDNG65Ⅱ	ZDNG65Ⅲ
Number of matched vibrator head & shaft	5	5
	Inquiry	Inquiry

Note: The length of flexible shaft is 1.2m and the length of cable is 7m or 8m.

Matched Vibrator Head & Shaft

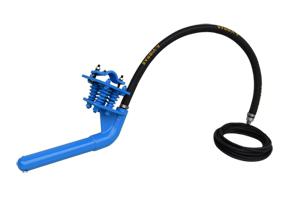

2. Concrete Paving Vibrator Shaft and Head
