The speed of the high frequency external concrete vibrator ranges from 6000 rpm to 12000 rpm, and an electronic frequency converter is used as power supply. This concrete vibrator is suitable for the prefabrication of various thin wall constructions and transmitting vibration onto surfaces of these constructions to provide a smooth finished surface.
Electronic frequency converter: ZEB150/165/10; ZEB150/165/6; ZEB200/165/10; ZEB200/165/6; ZEB200/68/4; ZEB200/56/3; ZEB200/30/2;
Optional Models

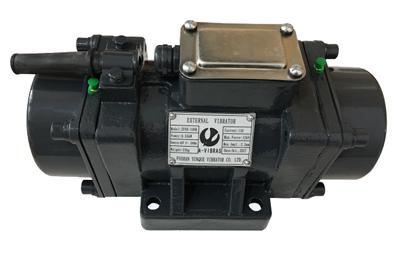

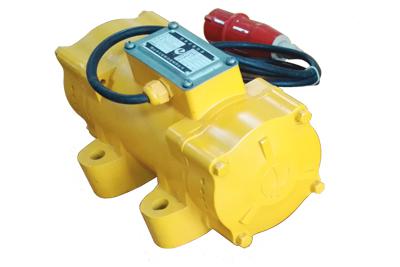

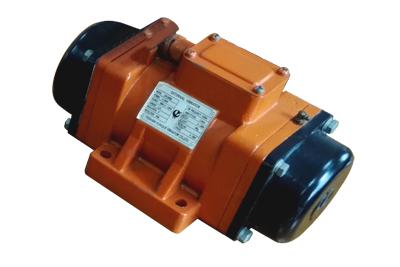

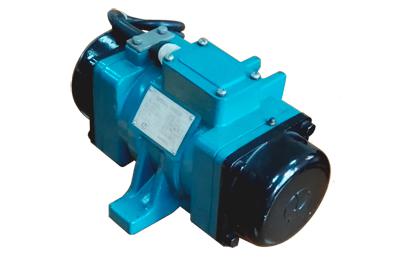

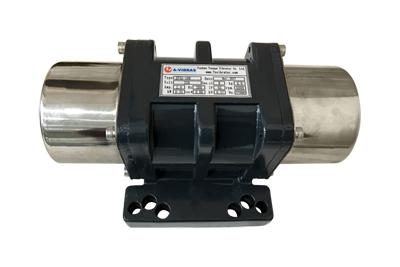

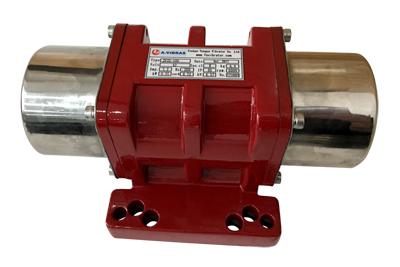

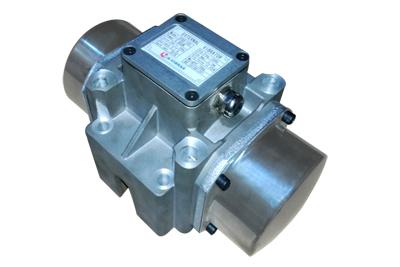

High Frequency External Concrete Vibrator
Model
Housing material
Max. centrifugal force (kN)
Vibration frequency Hz/vpm
Amplitude (total value) (mm)
Amplitude (half value) (mm)
Power Supply
Rated current (A)
Rated output power (kW)
Rated input power (kW)
Net weight (kg)
ZF25-100
Aluminium
6.57
100/6000
4.8
2.4
48V 3～ 200Hz
7.2
0.25
0.5
6.9
ZF35-100
Aluminium
6.57
100/6000
4.8
2.4
250V 3～ 200Hz
2
0.35
0.65
6.9
ZF55-100
Cast steel
12
100/6000
2.2
1.1
48V 3～ 200Hz
12
0.55
0.7
22
110V 3～ 200Hz
4.6
380V 3～ 200Hz
1.3
ZF55-100K
Cast steel
12
100/6000
2.2
1.1
48V 3～ 200Hz
12
0.55
0.7
26
110V 3～ 200Hz
4.6
380V 3～ 200Hz
1.3
ZF65-150
Cast steel
12
150/9000
1.3
0.65
48V 3～ 150Hz
13.4
0.65
0.8
22
110V 3～ 150Hz
4.8
380V 3～ 150Hz
1.4
ZF65-150K
Cast steel
12
150/9000
1.3
0.65
48V 3～ 150Hz
13.4
0.65
0.8
26
110V 3～ 150Hz
4.8
380V 3～ 150Hz
1.4
ZF85-100
Aluminium
13.32
100/6000
4.2
2.1
250V 3～ 200Hz
3.2
0.85
1.1
16
ZF90-200
Cast steel
12
200/12000
1
0.5
48V 3～ 200Hz
14
0.9
1.1
22
110V 3～ 200Hz
5
380V 3～ 200Hz
1.5
ZF90-200K
Cast steel
12
200/12000
1
0.5
48V 3～ 200Hz
14
0.9
1.1
26
110V 3～ 200Hz
5
380V 3～ 200Hz
1.5
ZF150-150
Aluminium
6
150/9000
1.2
0.6
250V 3～ 150Hz
4.7
1.5
1.75
18
380V 3～ 150Hz
3
Mounting Specification

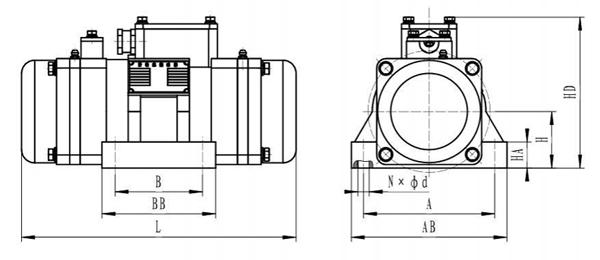

Feet Mounting
Model
Mounting dimension (mm)
Overall dimension (mm)
A
B
N×Φd
H
HA
AB
BB
HD
L
ZF25-100
125/135/140
90/115/65
8×Φ12.5 /4×Φ10.5
79
26
160
136
126
247
ZF35-100
125/135/140
90/115/65
8×Φ12.5 /4×Φ10.5
79
26
160
136
126
247
ZF55-100
150
100
4×Φ13
66
30
178
130
168
315
ZF65-150
150
100
4×Φ13
66
30
178
130
168
315
ZF85-100
120/154
120/90
4×Φ16.5 /4×Φ13
70
100
190
116
179
305
ZF90-200
150
100
4×Φ13
66
30
178
130
168
315
ZF150-150
180
120
4×Φ17
74
50
220
168
190
294

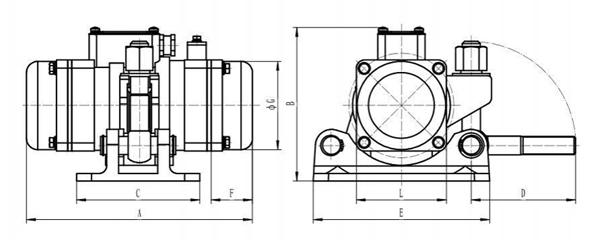

Quick Mounting
Model
Overall dimension (mm)
A
B
C
D
E
F
G
L
H
M
N
n-Φd
ZF55-100K
315
208
164
140
235
55
118
120
84
124
170
4-Φ22
ZF65-150K
315
208
164
140
235
55
118
120
84
124
170
4-Φ22
ZF90-200K
315
208
164
140
235
55
118
120
84
124
170
4-Φ22

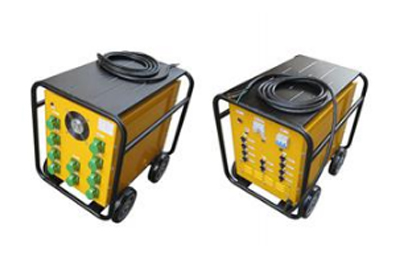

Optional ZEB Series Electronic Frequency Converters
Principles of selection:
The rated input power value indicated on the nameplate of the high frequency external concrete vibrator should be consistent with the output power of the electronic frequency converter.
The rated current of the high frequency external concrete vibrator should be less than the output current of the electronic frequency converter. (1) ZEB200 Series, Electronic frequency converter (200Hz)
Model
Capacity (kVA)
Input(Ph/Hz/V/A)
Output(Ph/Hz/V/A)
Overall Dimension L×W×H (mm)
Weight (kg)
Qty. of Applied Vibrators
ZEB200/165/10
16.5
3/50/380/14
3/200/48/136
710×550×700
63
10(ZF55-100、ZF55-100K)
3/200/110/55
3/200/250/23
3/200/380/14
ZEB200/165/6
16.5
3/50/380/14
3/200/48/136
710×550×615
60
6(ZF90-200、ZF90-200K)
3/200/110/55
3/200/250/23
3/200/380/14
ZEB200/68/4
6.8
3/50/380/6.0
3/200/48/80
650×435×600
50
4(ZF85-100)
3/200/110/32
3/200/250/13.5
3/200/380/6.0
ZEB200/56/3
5.6
3/50/380/5.5
3/200/48/65
650×435×600
47
3(ZF35-100)
3/200/110/26
3/200/250/11
3/200/380/5.5
ZEB200/30/2
3
3/50/380/4.5
3/200/48/36
650×435×600
40
2(ZF25-100)
3/200/110/14.4
3/200/250/6.0
3/200/380/4.5
(2) ZEB150 Series, Electronic frequency converter (150Hz)
Electronic Frequency Converter
