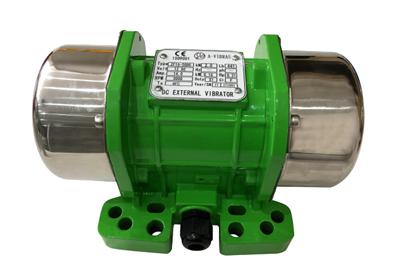

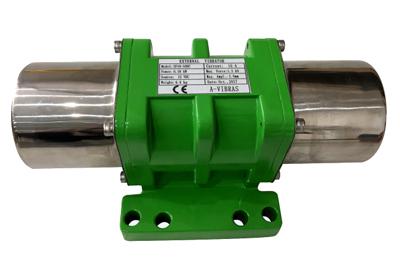

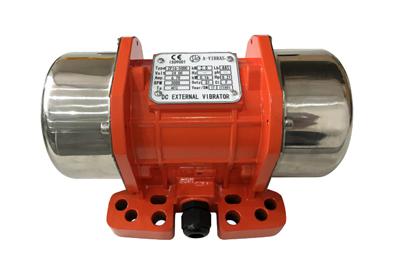

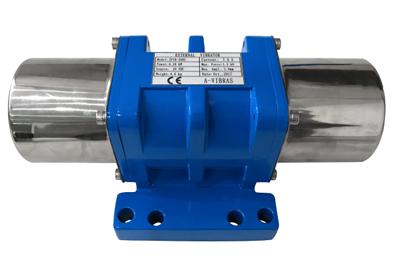

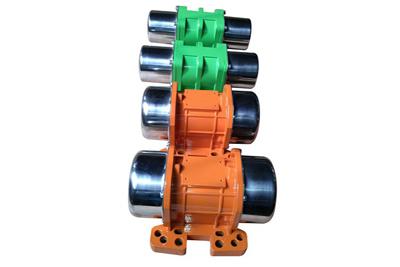

DC Motor External Concrete Vibrator

Recommended Application

The DC motor external concrete vibrator has aluminum housing, and it is adapted to the DC power supply on vehicles, so that it can be used directly on the concrete pump truck or other conveying equipment to assist the vibration and compaction work.

Motor power: 180W, 160W
2 poles, 3000rpm

Optional Models

ZF16-50DC (12VDC)
ZF16-50DC (24VDC)
ZF18-50DC (12VDC)
ZF18-50DC (24VDC)

Model	Max. centrifugal force (kN)	Vibration frequency (vpm)	Amplitude (total value) (mm)	Amplitude (half value) (mm)	Working voltage (V)	Rated current (A)	Rated output power (kW)	Rated input power (kW)	Net weight (kg)
ZF16-50DC(12VDC)	2	3000	6.4	3.2	12	14	0.12	0.16	6.2
ZF16-50DC(24VDC)	2	3000	6.4	3.2	24	6.7	0.12	0.16	6.2
ZF18-50DC(12VDC)	1.5	3000	4	2	12	15	0.11	0.18	6.6
ZF18-50DC(24VDC)	1.5	3000	4	2	24	7.5	0.11	0.18	6.6

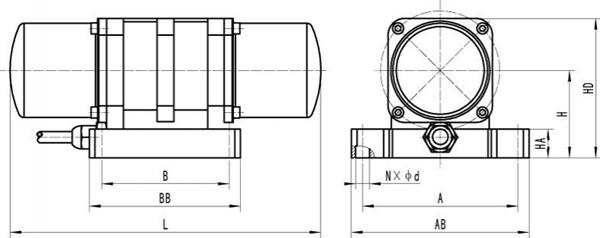

Mounting Specification

Model	Mounting dimension (mm)			Overall dimension (mm)
Model	A	B	N×Φd	H	HA	AB	BB	HD	L
ZF16-50DC	106/140/115/135	68/65/135/115	8×Φ11, 4×Φ13	82	25	164	158	140	222
ZF18-50DC	135/140	115/65	8×Φ12.5	79	26	160	136	126	279
