The ZDNE series electric concrete vibrator is suitable for internal vibration and compaction of fresh concrete. This vibrator has a compact structure and beautiful appearance, and it is convenient to carry. The concrete vibrator features lower working noise, so it is suitable for construction occasions wherever low noise level is required.
Design Principle
We integrate the vibrator with a variable frequency power supply to facilitate the user's operation directly by hands.
Consisting of: vibrating poker head + frequency switch box + flexible hose + power plug
Optional Models
Model
Poker head diameter (mm)
Poker head length (mm)
Weight (kg)
Vibrating frequency (vpm)
Amplitude (half value) (mm)
Amplitude (total value) (mm)
Centrifugal force (kN)
ZDNE35
35
352
10
12000
0.9
1.8
1
ZDNE45
45
368
12
12000
1
2
2.6
ZDNE50
50
390
13
12000
1
2
3.5
ZDNE60
60
436
16
12000
1.1
2.2
4.5
Components of Electronic Concrete Vibrator

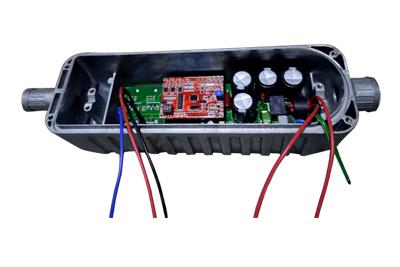

ZDNE Frequency Switch Box
Vibrating Poker Head
The built-in frequency converter is placed inside switch box, and electronic circuit is designed with complete protection functions to ensure safe and efficient operation of the vibrator. This concrete vibrator has no need for additional frequency conversion power supply.
The head cap and outer casing are all made of high quality carbon steel and treated by heat treating process to ensure its longer service life.
Since 1958, A-VIBRAS company is experienced in sophisticated and mature installation technology. Equipped with complete and advanced detection methods, we can ensure the reliability and consistency of each batch of concrete vibrators.
